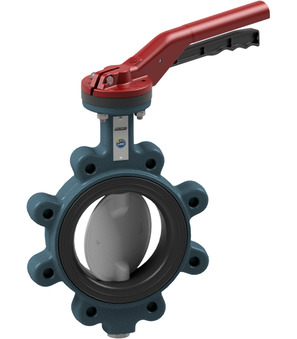

BULC-200-DNE-L

BULC-200-DNE-L

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-10bar; Flange PN10; Disc Aluminium-bronze

Intrastat No.: 84818085
Country of origin: Italy
Weight: 28.0 Kg
Short Itemnumber: BULC200DNEL
https://www.stasto.si/web/image/product.template/143619/image_1920?unique=c2c3c2e

butterfly valve with hand lever; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0-10bar; flange PN10; disc aluminium-bronze

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULC-200-DNE-B x 1.0
    BULC-200-DNE-B
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0…10bar; DN 200mm; Length 60mm
    Add to Cart
    HLBU-200-A
    HLBU-200-A x 1.0
    HLBU-200-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULA And BULY; DN 200mm
