BULG-080-DSTS-S22-A

Name: BULG-080-DSTS-S22-A
Brand: STASTO
SKU: BULG-080-DSTS-S22-A
Price: 1424.4 EUR
Availability: InStock

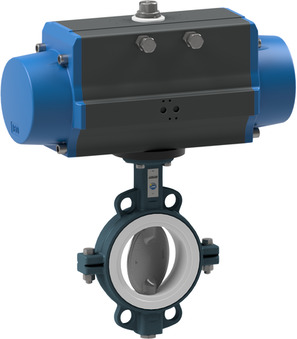

Butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Medium temperature -10...+190°C; Pressure range 0...10bar; Nominal flange pressure PN10/16; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAS1255

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULG080DSTSS22A

butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h X; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; medium temperature -10...+190°C; pressure range 0...10bar; nominal flange pressure PN10/16; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAS1255

1.424,40 € 1424.4 EUR 1.424,40 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BULD-080-DSTS-B-A x 1.0

Butterfly valve with bare shaft BULD-080-DSTS-B-A

butterfly valve with bare shaft series BUL-DSTS-B; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; medium temperature -10...+190°C; DN 80mm; nominal flange pressure PN10/16; length 46mm; ATEX zone 1 and 21 II 2GD Ex h X EPT 14

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
