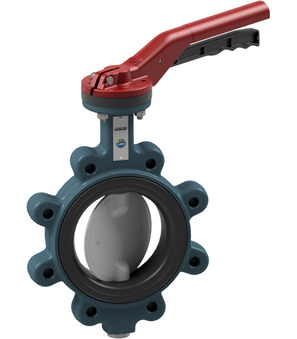

butterfly valve with hand lever BULG-125-DPV-L

Name: butterfly valve with hand lever BULG-125-DPV-L
SKU: BULG-125-DPV-L
Price: 482.1 EUR
Availability: InStock

butterfly valve with hand lever series BULG-L, BULC-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner FKM; medium temperature -20...+200°C; DN 125mm; length 56mm; pressure range 0-16bar; flange PN10/16; disc GGG40 verzinkt

Intrastat No.: 84818085
Country of origin: Italy
Weight: 0.65 Kg
Short Itemnumber:BULG125DPVL

482,10 € 482.1 EUR 482,10 €

DN
- 125 mm
Length
- 56 mm
Flange
- PN10/16
Pressure range
- 0...16 bar
Disc
- GGG40 Zinc plated

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

dimension
DN	125 mm
Length	56 mm
Flange	PN10/16
pressure
Pressure range	0...16 bar
materials
Disc	GGG40 Zinc plated

BULG-125-DPV-B x 1.0

butterfly valve with bare shaft BULG-125-DPV-B

butterfly valve with bare shaft series BUL1-DPV-B, BULA-DPV-B, BULG-DPV-B, BULC-DPV-B, BULU-DPV-B, BULY-DPV-B; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner FKM; medium temperature -20...+200°C; DN 125mm; length 56mm; pressure range 0…16bar; nominal flange pressure PN10/16; disc GGG40 verzinkt
