BULY-080-DSN-G-01

BULY-080-DSN-G-01

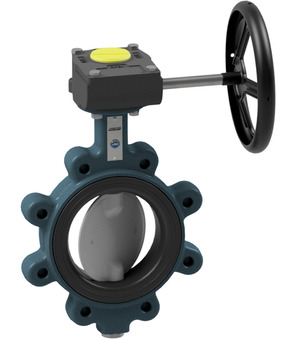

Butterfly valve with manual gear box Series BULY-DSN-G-01; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC

Intrastat No.: 84818085
Country of origin: Netherlands
Short Itemnumber: BULY080DSNG01
https://www.stasto.si/web/image/product.template/216923/image_1920?unique=186ae6e

butterfly valve with manual gear box series BULY-DSN-G-01; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC

402,70 € 402.7 EUR 402,70 €

cena na zahtevo

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULY-080-DSN-B-01 x 1.0
    Butterfly valve with bare shaft BULY-080-DSN-B-01
    Butterfly valve with bare shaft Series BULY-DSN-B-01; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC
    Add to Cart
    GB02-07/11-01
    GB02-07/11-01 x 1.0
    GB02-07/11-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 11mm
