BUW2-150-DSV-D33

Name: BUW2-150-DSV-D33
Brand: STASTO
SKU: BUW2-150-DSV-D33
Price: 1127.6 EUR
Availability: InStock

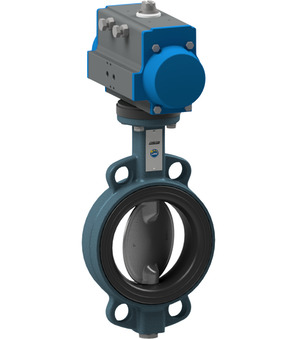

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0…6bar; DN 150mm; Length 56mm; Actuator PAD100

Intrastat No.: 84818085
Country of origin: Italy
Weight: 14.74 Kg
Short Itemnumber: BUW2150DSVD33

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0…6bar; DN 150mm; length 56mm; actuator PAD100

1.127,60 € 1127.6 EUR 1.127,60 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0…6bar

Specifications
Spare Parts

Pressure range

0…6bar

BUW2-150-DSV-B x 1.0 Pcs

BUW2-150-DSV-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...6bar; DN 150mm; Length 56mm
