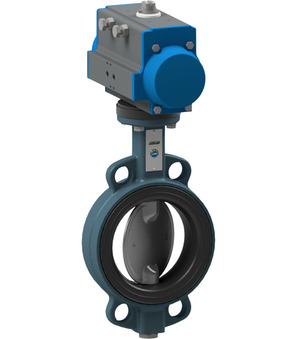

BUW2-200-DSE-D32

Name: BUW2-200-DSE-D32
Brand: STASTO
SKU: BUW2-200-DSE-D32
Price: 879.8 EUR
Availability: InStock

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 200mm; Length 60mm; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 18.99 Kg
Short Itemnumber: BUW2200DSED32

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...6bar; DN 200mm; length 60mm; actuator PAD085

879,80 € 879.8 EUR 879,80 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW2-200-DSE-B x 1.0

Butterfly valve with bare shaft BUW2-200-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Flange PN10/16/ANSI150

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

APKTGB0056 x 1.0
