BUW2-300-DPE-S31

Name: BUW2-300-DPE-S31
Brand: STASTO
SKU: BUW2-300-DPE-S31
Price: 2131.9 EUR
Availability: InStock

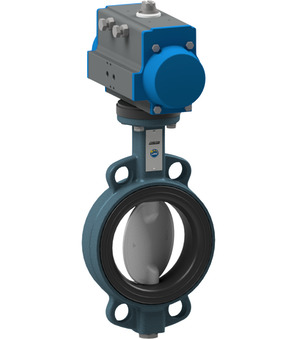

Butterfly valve with pneumatic actuator Series BUW2; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated steel (DN50...100); Ductile iron EN-GJS-400-15 Zinc plated (>DN100); Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Water 0-6bar; DN 300mm; Length 78mm; Pressure range 0-6bar; Actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy
Weight: 62.1 Kg
Short Itemnumber: BUW2300DPES31

2.131,90 € 2131.9 EUR 2.131,90 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW2-300-DPE-B x 1.0

Butterfly valve with bare shaft BUW2-300-DPE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Disc GGG40 verzinkt; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0052 x 1.0
