BUW2-300-DSE-S32-08
BUW2-250-SSSS-B
BUW2-250-SSSS-B
2.140,20 €
2.140,20 €
A-GES38ZSR11/271
A-GES38ZSR11/271
cena na zahtevo

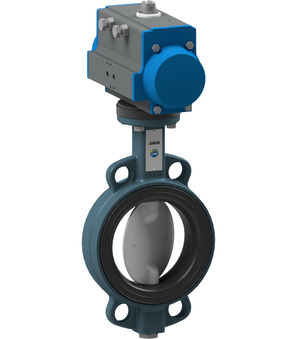

BUW2-300-DSE-S32-08

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...7bar; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 300mm; Length 78mm; Actuator PAS2305R; Rotation angle 0-90° Adjustable; With mounted digital positioner, 4-20mA And Compressed air filters 5ym; In case of failure of the control signal the butterflyvalve will be open

Intrastat No.: 84818085
Country of origin: Italy
Weight: 113.256 Kg
Short Itemnumber:BUW2300DSES3208
https://www.stasto.si/web/image/product.template/142743/image_1920?unique=a0dcc71

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...7bar; medium temperature -10...+130°C; pressure range 0...6bar; DN 300mm; length 78mm; actuator PAS2305R; rotation angle 0-90° adjustable; with mounted digital positioner, 4-20mA and compressed air filters 5ym; in case of failure of the control signal the butterflyvalve will be open

999.999,00 € 999999.0 EUR 999.999,00 €

cena na zahtevo

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    CAD / 3D
    1
    CADSTEP_BUW2300DSES3208.stp
    Download
    BUW2-300-DSE-B x 1.0
    Butterfly valve with bare shaft BUW2-300-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150
    Add to Cart
    Pneumatic actuator PAS2305-R
    PAS2305-R x 1.0
    Pneumatic actuator PAS2305-R
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90° Adjustable; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm
    Add to Cart
    APKTGB0014 x 1.0
    APKTGB0014
    Mounting bracket For butterfly valve; F10-Square 22; Actuator F16-Square 46
    Add to Cart
    EP0S10
    EP0S10 x 1.0
    EP0S10
    Mounted positioner; digitaler I/P-Stellungsregler, 4-20 mA; Actuator PAS052-270
    Add to Cart
    F-14-05-PE-SS
    F-14-05-PE-SS x 1.0
    F-14-05-PE-SS
    Filter; Drain valve Semi-automatic; Filter element 5ym; Plastic bowl with protection cage; Connection 1/4"; Flow at 6,3bar/Δp=1bar 800Nl/min; Max. inlet pressure 16bar
    Add to Cart
