BUW4-050-SSTS-D22-01

Name: BUW4-050-SSTS-D22-01
Brand: STASTO
SKU: BUW4-050-SSTS-D22-01

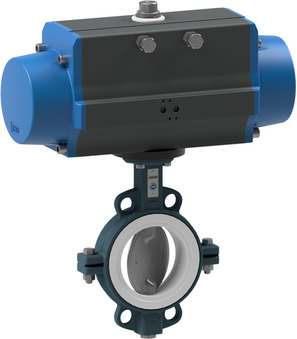

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body 1.4408; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -55...+190°C; Pressure range 0...10bar; DN 50mm; Length 43mm; ; Actuator PAD063; Incl. Notch impact test For Body

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW4050SSTSD2201

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body AISI 316; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -55...+190°C; pressure range 0...10bar; DN 50mm; length 43mm; ; actuator PAD063; incl. notch impact test for body

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BUW4-050-SSTS-B-01 x 1.0

BUW4-050-SSTS-B-01

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body 1.4408; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -55...+190°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Incl. Notch impact test For Body

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

MFFALFUAL09733 x 1.0
