BUW4-100-SSTS-D32

Name: BUW4-100-SSTS-D32
Brand: STASTO
SKU: BUW4-100-SSTS-D32

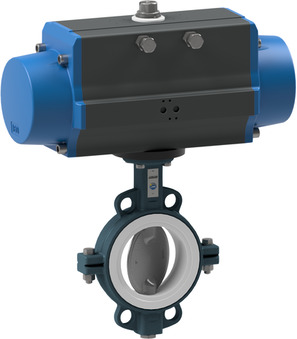

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body 1.4408; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...6bar; DN 100mm; Length 52mm; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.15 Kg
Short Itemnumber: BUW4100SSTSD32

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body AISI 316; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...6bar; DN 100mm; length 52mm; actuator PAD085

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BUW4-100-SSTS-B x 1.0

BUW4-100-SSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -60...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

MFFALFUAL09733 x 1.0
