BUW4-200-DSW-SD2-A3C1

Name: BUW4-200-DSW-SD2-A3C1
Brand: STASTO
SKU: BUW4-200-DSW-SD2-A3C1
Price: 1306.2 EUR
Availability: InStock

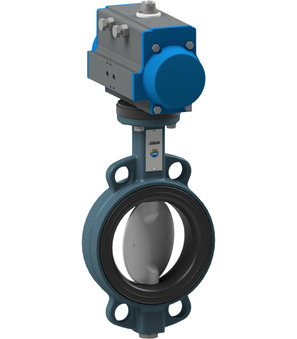

Butterfly valve with pneumatic actuator Series BUW4-DSW-SD2-A3C1; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM White; Medium temperature -10...+130°C; Pressure range Solids 0-6bar; Nominal flange pressure PN10/16/ANSI150; DN 200mm; Length 60mm; Single acting actuator; Control pressure 6...8bar; Actuator PAS1155-B; Actuator mounted 90° twisted; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 26.33 Kg
Short Itemnumber: BUW4200DSWSD2A3C1

butterfly valve with pneumatic actuator series BUW4-DSW-SD2-A3C1; ATEX II 2 G/D Ex h; wafer type; length according to EN558-1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM white; medium temperature -10...+130°C; pressure range solids 0-6bar; nominal flange pressure PN10/16/ANSI150; DN 200mm; length 60mm; single acting actuator; control pressure 6...8bar; actuator PAS1155-B; actuator mounted 90° twisted; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

1.306,20 € 1306.2 EUR 1.306,20 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW4-200-DSW-B-A3C x 1.0

Butterfly valve with bare shaft BUW4-200-DSW-B-A3C

Butterfly valve with bare shaft Series BUW4-DSW-B-A3C; ATEX II 2 G/D Ex h XWafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM White; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Flange PN10/16/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Add to Cart

PAS1155-B x 1.0

PAS1155-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Pinion turned by 90°; Torque at 5,5bar 71,1Nm

Add to Cart

APKTGB0049 x 1.0
