Butterfly valve with electrical actuator BUW6-050-DSE-0G2

Price:

785,27 €
Butterfly valve with electrical actuator Series BUW6-DSE-02 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Butterfly valves - electrically operated
  5. Butterfly valve with electrical actuator Series BUW6-DSE-02
  6. BUW6-050-DSE-0G2

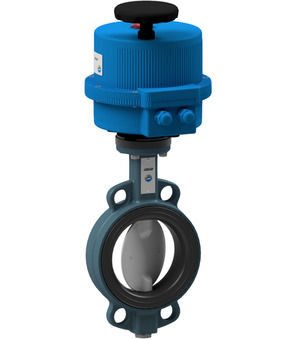

Butterfly valve with electrical actuator BUW6-050-DSE-0G2
Butterfly valve with electrical actuator BUW6-050-DSE-0K2
Butterfly valve with electrical actuator BUW6-050-DSE-0K2
720,92 €
720,92 €
Butterfly valve with electrical actuator BUW6-065-DSE-0K2
Butterfly valve with electrical actuator BUW6-065-DSE-0K2
735,17 €
735,17 €

Butterfly valve with electrical actuator BUW6-050-DSE-0G2

Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Operating time 9s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.17 Kg
Short Itemnumber:BUW6050DSE0G2
https://www.stasto.si/web/image/product.template/88210/image_1920?unique=bb1e3af

Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Operating time 9s; Voltage 100-240VAC

785,27 € 785.27 EUR 785,27 €

cena na zahtevo

  • DN
  • Length
  • Voltage
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 43 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB060H
Operating time 9 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with electrical actuator Series BUW6-DSE-02_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly instruction_Butterfly valve with electrical actuator Series BUW6-DSE-02_EN.pdf
Download
CAD / 3D
1
CADSTEP_BUW6050DSE0G2.stp
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s elektropohonem série BUW6-DSE-02_CS.pdf
Download
Montážní a provozní návody
1
Montážní předpis_uzavírací klapka s elektropohonem série BUW6-DSE-02_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med elektrisk aktuator Serie BUW6-DSE-02_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Elektroantrieb Serie BUW6-DSE-02_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montageanleitung_Absperrklappe mit Elektroantrieb Serie BUW6-DSE-02_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Πεταλούδα απομόνωσης με ηλεκτρικό ενεργοποιητή Σειρά BUW6-DSE-02_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de mariposa con actuador eléctrico Serie BUW6-DSE-02_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili sähkökäytöllä Sarja BUW6-DSE-02_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec actionneur électrique Série BUW6-DSE-02_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Zaporni leptir ventil s električnim pogonom Serija BUW6-DSE-02_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett pillangószelep sorozat BUW6-DSE-02_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Üzembehelyezési útmutató_elektromos hajtóművel működtetett pillangószelep sorozat BUW6-DSE-02_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Serranda di intercettazione con attuatore elettrico Serie BUW6-DSE-02_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjeldventil med elektrisk aktuator Serie BUW6-DSE-02_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met elektrische aandrijving Serie BUW6-DSE-02_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem elektrycznym Seria BUW6-DSE-02_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu_przepustnica z napędem elektrycznym Seria BUW6-DSE-02_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă fluture cu actuator electric serie BUW6-DSE-02_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z električnim pogonom serija BUW6-DSE-02_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo_Zaporna loputa z električnim pogonom serija BUW6-DSE-02_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa električnim aktuatorom serije BUW6-DSE-02_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu_leptir ventil sa električnim aktuatorom serije BUW6-DSE-02_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med elektriskt ställdon Serie BUW6-DSE-02_SV.pdf
Download
BUW6-050-DSE-B x 1.0
Butterfly valve with bare shaft BUW6-050-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
Electrical actuator VB060-H
VB060-H x 1.0
Electrical actuator VB060-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
