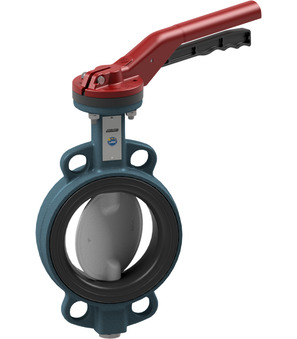

BUW6-065-DSN-L-A3D01

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Coating C3 RALXXXX; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16/ANSI150; ATEX II 2 GD c T5; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety

Intrastat No.: 84818085
Country of origin: Italy
Weight: 0.59 Kg
Short Itemnumber:BUW6065DSNLA3D01

butterfly valve with hand lever; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 coating C3 RALXXXX; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 65mm; length 46mm; pressure range 0...16bar; flange PN10/16/ANSI150; ATEX II 2 GD c T5; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; certificate TR CU; with valve pass and Verify safety

cena na zahtevo

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BUW6-065-DSN-B-A3D01 x 1.0

BUW6-065-DSN-B-A3D01

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Coating C3 RALXXXX; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16/ANSI150; ATEX II 2 GD c T5; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety
