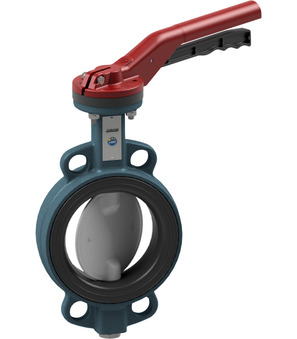

BUW6-080-DNV-L

BUW6-080-DNV-L

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Aluminium-bronze; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.35 Kg
Short Itemnumber: BUW6080DNVL
https://www.stasto.si/web/image/product.template/156983/image_1920?unique=bc4583f

butterfly valve with hand lever; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc aluminium-bronze; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 80mm; length 46mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-080-DNV-B x 1.0
    BUW6-080-DNV-B
    Butterfly valve with bare shaft Series BUW6-DNV-B; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Aluminium-bronze; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 80mm; Length 46mm
    Add to Cart
    HLBU-040100-A
    HLBU-040100-A x 1.0
    HLBU-040100-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
