BUW6-080-DSE-S22-A3C

Name: BUW6-080-DSE-S22-A3C
Brand: STASTO
SKU: BUW6-080-DSE-S22-A3C
Price: 802.6 EUR
Availability: InStock

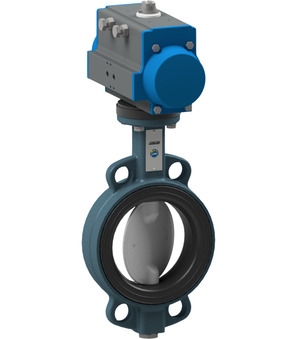

Butterfly valve with pneumatic actuator; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAS1155; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.53 Kg
Short Itemnumber: BUW6080DSES22A3C

butterfly valve with pneumatic actuator; ATEX Ex II 2GD c TX; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAS1155; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

802,60 € 802.6 EUR 802,60 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-080-DSE-B-A3C x 1.0

BUW6-080-DSE-B-A3C

Butterfly valve with bare shaft; Wafer type; ATEX Ex II 2GD c TX; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 80mm; Length 46mm

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
