BUW6-100-DSV-D22

Name: BUW6-100-DSV-D22
Brand: STASTO
SKU: BUW6-100-DSV-D22
Price: 733.5 EUR
Availability: InStock

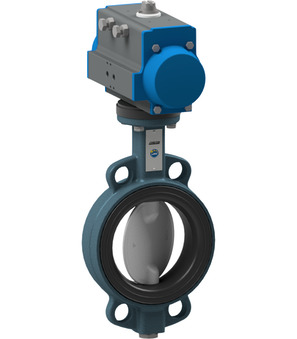

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.65 Kg
Short Itemnumber: BUW6100DSVD22

733,50 € 733.5 EUR 733,50 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar

Documents

Data sheets, drawings and CAD files

Pressure range

0...10bar

BUW6-100-DSV-D22

Documents

1 Documents

Language-independent

ZIP

CAD / 3D

STP
CADSTEP · BUW6100DSVD22
CAD-STEP 9,9 MB Updated 27/09/2026

Download

BUW6-100-DSV-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-100-DSV-B

Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 100mm; Length 52mm
