Butterfly valve with hand lever Series BUW6-DN-L Store

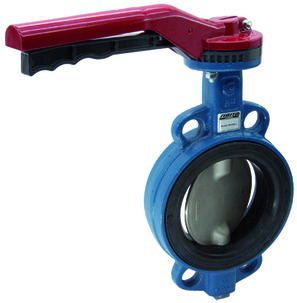

Butterfly valve with hand lever BUW6-150-DPN-L

Name: Butterfly valve with hand lever BUW6-150-DPN-L
Brand: STASTO
SKU: BUW6-150-DPN-L
Price: 234.2 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW6-DN-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Disc GGG40 verzinkt

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.9 Kg
Short Itemnumber: BUW6150DPNL

butterfly valve with hand lever series BUW6-DN-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 150mm; length 56mm; disc GGG40 verzinkt
