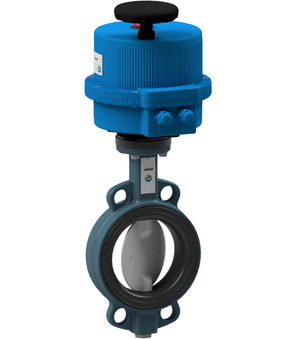

Butterfly valve with electrical actuator BUW6-200-DPE-0G2

Butterfly valve with electrical actuator BUW6-200-DPE-0G2

Butterfly valve with electrical actuator Series BUW6-DE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Disc Zinc plated ductile iron EN-GJS-400-15; Operating time 50s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 20.43 Kg
Short Itemnumber: BUW6200DPE0G2
https://www.stasto.si/web/image/product.template/88382/image_1920?unique=fcc32fd

Butterfly valve with electrical actuator Series BUW6-DE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Disc Zinc plated ductile iron EN-GJS-400-15; Operating time 50s; Voltage 100-240VAC

1.330,50 € 1330.5 EUR 1.330,50 €

cena na zahtevo

excl. tax
  • DN
  • Length
  • Voltage
  • Disc
  • Actuator
  • Operating time
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
DN 200 mm
Length 60 mm
Disc GGG40 Zinc plated
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
DN 200 mm
Length 60 mm
Disc GGG40 Zinc plated
Operating time 50 s
Voltage 100-240VAC
Brand STASTO

BUW6-200-DPE-0G2

Documents

3 Documents 7 Languages

Czech / Čeština
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
BUW6-200-DPE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-200-DPE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Disc GGG40 verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150
Electrical actuator VB350-H
VB350-H x 1.0 Pcs
Electrical actuator VB350-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100-240VAC; Protection class IP67
APKTGB0049 x 1.0 Pcs
APKTGB0049
Mounting bracket; For damper; DN200; F10/F07-17-22
