BUW6-250-DSN-0G2-A

BUW6-250-DSN-0G2-A

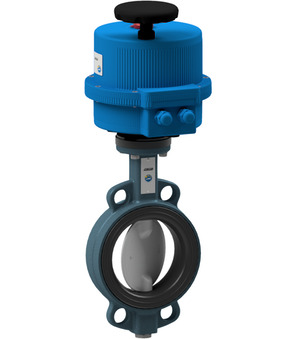

Butterfly valve with electrical actuator; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Operating time 50s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 28.39 Kg
Short Itemnumber: BUW6250DSN0G2A
https://www.stasto.si/web/image/product.template/160896/image_1920?unique=24fee4a

butterfly valve with electrical actuator; ATEX Ex II 2GD c TX; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 250mm; length 68mm; operating time 50s; voltage 100-240VAC

1.775,70 € 1775.7 EUR 1.775,70 €

cena na zahtevo

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BUW6-250-DSN-B-A x 1.0
BUW6-250-DSN-B-A
Butterfly valve with bare shaft; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 250mm; Length 68mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
Add to Cart
Electrical actuator VB350-H
VB350-H x 1.0
Electrical actuator VB350-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100-240VAC; Protection class IP67
