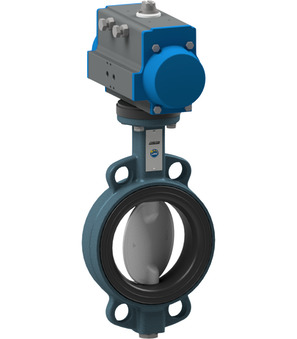

BUW6-400-DPN-D22-3C
Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Pressure range 0...10bar; DN 400mm; Length 102mm; Disc Zinc plated ductile iron EN-GJS-400-15; Actuator PAD200
Country of origin: Italy
Weight: 0.0 Kg
Short Itemnumber: BUW6400DPND223C
butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; pressure range 0...10bar; DN 400mm; length 102mm; disc zinc plated ductile iron EN-GJS-400-15; actuator PAD200
