Butterfly valve with manual gear box Series BUW-SSR-G Store

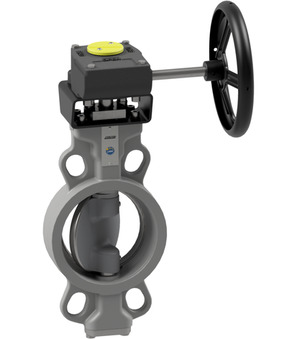

Butterfly valve with manual gear box BUW9-150-SSRS-G

Name: Butterfly valve with manual gear box BUW9-150-SSRS-G
SKU: BUW9-150-SSRS-G
Price: 2018.1 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUW-SSR-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.12 Kg
Short Itemnumber:BUW9150SSRSG

butterfly valve with manual gear box series BUW-SSR-G; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 150mm; length 56mm; nominal flange pressure PN10/16/25/ANSI150

2.018,10 € 2018.1 EUR 2.018,10 €

DN
- 150 mm
Length
- 56 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...25 bar

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

dimension
DN	150 mm
Length	56 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...25 bar

BUW9-150-SSRS-B x 1.0

Butterfly valve with bare shaft BUW9-150-SSRS-B

Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -55...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
