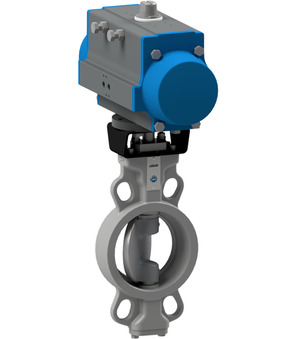

Butterfly valve with pneumatic actuator BUW9-400-CSIS-D42

Butterfly valve with pneumatic actuator BUW9-400-CSIS-D42

Butterfly valve with pneumatic actuator Series BUW-CSIS-D; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 400mm; Length 102mm; Pressure range 0...25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD330-H

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 375.0 Kg
Short Itemnumber: BUW9400CSISD42
https://www.stasto.si/web/image/product.template/129849/image_1920?unique=bcfc56d

butterfly valve with pneumatic actuator series BUW-CSIS-D; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 400mm; length 102mm; pressure range 0...25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD330-H

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 400 mm
Length 102 mm
Flange PN10/16/25, ANSI150
Pressure range 0...25 bar
DN 400 mm
Length 102 mm
Flange PN10/16/25, ANSI150
BUW9-400-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-400-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 400mm; Length 102mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAD330-H
PAD330-H x 1.0 Pcs
Pneumatic actuator PAD330-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 330mm; Flange ISO5211 F16/F25; Female square 55mm; Torque at 5,5bar 5059Nm
APKTGB00XX x 1.0 Pcs
APKTGB00XX
Mounting bracket For butterfly valve; BUW4-DN400 (F12); Key 12/40; Actuator F16/F25-55
