Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar

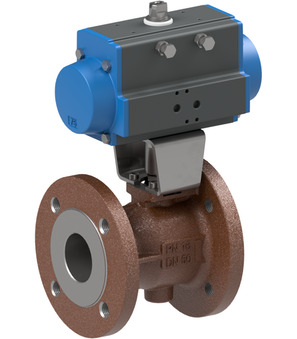

Flanged ball valve with pneumatic actuator Series BA040-D -
Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BA040-S -
Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

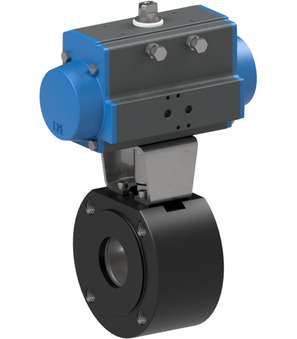

Flanged ball valve with pneumatic actuator Series BADA -
Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BADA -
Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°CFlanged ball valve with pneumatic actuator Series BAEB, BAEA
-
Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C
Flanged ball valve with pneumatic actuator Series BAEB, BAEA -

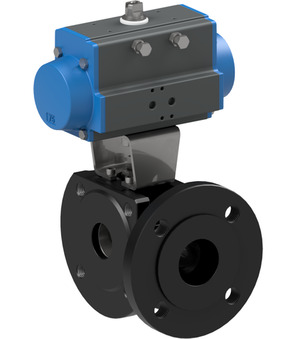

3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16barFlanged ball valve with pneumatic actuator Series BAMA, BAUA
-
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16barFlanged ball valve with pneumatic actuator Series BAMA, BAUA
-
Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

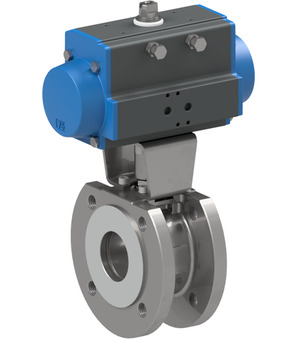

Flanged ball valve with pneumatic actuator Series BADA -
Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BADA -
Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

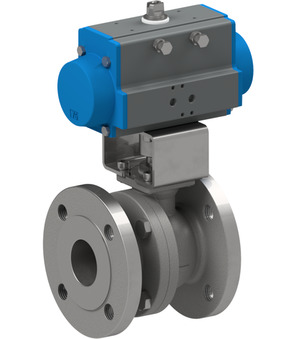

Flanged ball valve with pneumatic actuator Series BAEB, BAEA -
Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
Flanged ball valve with pneumatic actuator Series BAEB, BAEA -
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

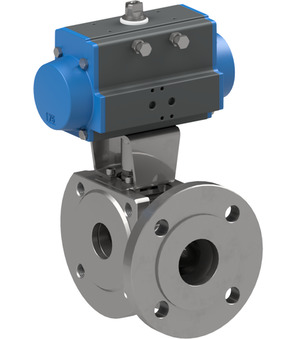

Flanged ball valve with pneumatic actuator Series BAMA, BAUA -
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BAMA, BAUA -
3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

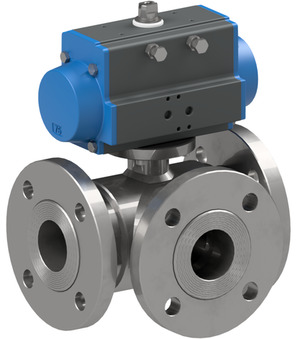

Flanged ball valve with pneumatic actuator Series BA055, BA056 -
3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
Flanged ball valve with pneumatic actuator Series BA055, BA056
Flanged ball valves - pneumatically operated
Flanged ball valve with pneumatic actuator Series BA040-S
Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar
| DN | Length | Pressure range | Voltage | Design | Switch type | Contact material | Material of case | Function | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 mm | 125 mm | 0...16 bar | - | - | - | - | - | - | BA040-025-S0 | 25170000 |
| 32 mm | 130 mm | 0...16 bar | - | - | - | - | - | - | BA040-032-S0 | 25170007 |
| 40 mm | 140 mm | 0...16 bar | - | - | - | - | - | - | BA040-040-S0 | 25170014 |
| DN | Length | Pressure range | Voltage | Design | Switch type | Contact material | Material of case | Function | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 mm | 125 mm | 0...16 bar | 24VDC / 48V/50-60Hz | Standard | - | - | - | - | BA040-025-S0-ABS53-C001-03-C002-31-6 | 25170001 |
| 25 mm | 125 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BA040-025-S0-ABS53-C001-03-C002-31-LV-2 | 25170002 |
| 25 mm | 125 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | BA040-025-S0-ABS53-C001-03-C002-31-LVCV20-2 | 25170003 |
| 25 mm | 125 mm | 0...16 bar | 230V/50-60Hz | Standard | - | - | - | - | BA040-025-S0-ABS53-C001-22-C002-31-6 | 25170004 |
| 25 mm | 125 mm | 0...16 bar | 230V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BA040-025-S0-ABS53-C001-22-C002-31-LV-1 | 25170005 |
| 25 mm | 125 mm | 0...16 bar | 230V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | BA040-025-S0-ABS53-C001-22-C002-31-LVCV20-1 | 25170006 |
| 32 mm | 130 mm | 0...16 bar | 24VDC / 48V/50-60Hz | Standard | - | - | - | - | BA040-032-S0-ABS53-C001-03-C002-31-6 | 25170008 |
| 32 mm | 130 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BA040-032-S0-ABS53-C001-03-C002-31-LV-2 | 25170009 |
| 32 mm | 130 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | BA040-032-S0-ABS53-C001-03-C002-31-LVCV20-2 | 25170010 |
| 32 mm | 130 mm | 0...16 bar | 230V/50-60Hz | Standard | - | - | - | - | BA040-032-S0-ABS53-C001-22-C002-31-6 | 25170011 |
| 32 mm | 130 mm | 0...16 bar | 230V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BA040-032-S0-ABS53-C001-22-C002-31-LV-1 | 25170012 |
| 32 mm | 130 mm | 0...16 bar | 230V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | BA040-032-S0-ABS53-C001-22-C002-31-LVCV20-1 | 25170013 |
| 40 mm | 140 mm | 0...16 bar | 24VDC / 48V/50-60Hz | Standard | - | - | - | - | BA040-040-S0-ABS53-C001-03-C002-31-6 | 25170015 |
| 40 mm | 140 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BA040-040-S0-ABS53-C001-03-C002-31-LV-2 | 25170016 |
| 40 mm | 140 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | BA040-040-S0-ABS53-C001-03-C002-31-LVCV20-2 | 25170017 |
| 40 mm | 140 mm | 0...16 bar | 230V/50-60Hz | Standard | - | - | - | - | BA040-040-S0-ABS53-C001-22-C002-31-6 | 25170018 |
| 40 mm | 140 mm | 0...16 bar | 230V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BA040-040-S0-ABS53-C001-22-C002-31-LV-1 | 25170019 |
