Pressure switches, measuring instruments and flow monitors

STASTO Allgemein SI
FM14-12-W-14-01
Flow monitors; Body, Inner parts: Stainless steel 1.4571; Seals EPDM; For any mounting position; Medium temperature Max. 100°C; Connection 1/2"; Switching range 0,5...14l/min; Maximum pressure 10bar; Length 135mm; Without Switch unit
FM14-12-W-28-01
Flow monitors; Body, Inner parts: Stainless steel 1.4571; For any mounting position; Medium temperature Max. 100°C; Water scale; Change-over contact SPS; Connection 1/2"; Switching range 1...28l/min; Maximum pressure 10bar; U max. 250V; Max. current 1A; 60VA Length 135mm
FM14-34-W-45
Flow monitors; Body, Inner parts: Stainless steel 1.4571; For any mounting position; Medium temperature Max. 100°C; Water scale; Change-over contact; Connection 3/4"; Switching range 1...45l/min; Maximum pressure 10bar; U max. 250V; Max. current 1,5A; Length 167mm
FM14-34-W-80
Flow monitors; Body, Inner parts: Stainless steel 1.4571; For any mounting position; Medium temperature Max. 100°C; Water scale; Change-over contact; Connection 3/4"; Switching range 2...80l/min; Maximum pressure 10bar; U max. 250V; Max. current 1,5A; Length 163mm
FM14-38-W-8-01
Flow monitors; Body, Inner parts: Stainless steel 1.4571; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 3/8"; Switching range 0,5...8l/min; Maximum pressure 10bar; U max. 250V; Max. current 3A; Length 135mm

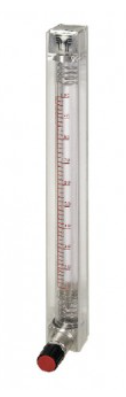

FM15-14-S-25-01
Flow meter; Body 1.4401, Float 1.4404; Seal Viton; Mounting position Vertical; Medium temperature Max. 100°C; Water scale; Connection 1/4"; Measuring range 2,5...25L/h; Maximum pressure 15bar
FM15-14-Z-100-01
Flow meter; Body And Float 1.4404; Seal Viton; Mounting position Vertical; Medium temperature -20...+80°C Water scale; Connection 1/4"; Measuring range 10…100L/h; Maximum pressure 15bar; Incl. valve
FM15-14-Z-1317-01
Flow meter; Body Stainless steel 1.4404; Float 1.4404; Seal FKM; Temperature range -20...+80°C, Maximum pressure 15bar; Mounting position Vertical; Application: Oxygen; Connection 1/4"; Measuring range Special scale Measuring range 108...1317Nl/h At 7 bar; Without Valve; Free of oil and grease For Oxygen
FM15-14-Z-20-01
Flow meter; Body Stainless steel 1.4404; Float Glass; Seal Viton; Mounting position Vertical; Medium temperature -20...+80°C; Air scale; Connection 1/4"; Measuring range 1…20 Nl/min.; Operating pressure at 20°C 2bar; Incl. valve
FM15-14-Z-2-01
Flow meter; Body Stainless steel 1.4404; Float Glass; Seal Viton; Mounting position Vertical; Medium temperature -20...+80°C Water scale; Connection 1/4"; Measuring range 0,2…2L/h; Maximum pressure 15bar; Incl. valve
FM15-14-Z-40-01
Flow meter; Body Stainless steel 1.4404; Float Glass; Seal Viton; Mounting position Vertical; Medium temperature -20...+80°C Water scale; Connection 1/4"; Measuring range 4…40L/h; Maximum pressure 15bar; Incl. valve
FM15-14-Z-60
Flow meter; Body Stainless steel 1.4404; Float Glass; Seal FKM; Mounting position Vertical; Medium temperature -20...+80°C Water scale; Connection 1/4"; Measuring range 6…60L/h; Maximum pressure 15bar
FM15-14-Z-60-01
Flow meter; Body Stainless steel 1.4404; Float 1.4404; Seal EPDM; Temperature range -20...+80°C, Maximum pressure 15bar; Mounting position Vertical; Application: Water; Connection 1/4"; Measuring range Special scale For Density 6,3…62,8L/h; Without Valve
FM15-14-Z-6-01
Flow meter; Body Stainless steel 1.4404; Float Glass; Seal Viton; Mounting position Vertical; Medium temperature -20...+80°C Water scale; Connection 1/4"; Measuring range 0,6…6L/h; Maximum pressure 15bar; Incl. valve
FM15-14-Z-700-01
Flow meter; Body 1.4404; Float Glass; Seal NBR; Mounting position Vertical; Medium temperature -20...+80°C Air scale; Connection 1/4"; Measuring range 70…700Nl/h; Maximum pressure 15bar; Length 136mm; Incl. valve
FM15-N14-Z-1-01
Flow meter; Body And Float 1.4404; Seal Viton; Mounting position Vertical; Medium temperature -20...+80°C Water scale; Connection 1/4" NPT; Measuring range 0,1…1L/h; Maximum pressure 15bar; Incl. valve
FM16-112-N-250
Flow monitors; Body, Float Nickel plated brass; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 11/2"; Switching range 35...250l/min; Maximum pressure 200bar; U max. 250V; Max. current 3A; Length 200mm
FM16-12-N-14
Flow monitors; Body, Float Nickel plated brass; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1/2"; Switching range 1...14l/min; Maximum pressure 200bar; U max. 250V; Max. current 1A; Length 131mm
FM16-12-N-28
Flow monitors; Body, Float Nickel plated brass; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1/2"; Switching range 1...28l/min; Maximum pressure 200bar; U max. 250V; Max. current 1A; Length 131mm
FM16-12-W-14-01
Flow monitors; Body, Float Stainless steel 1.4571; For any mounting position; Medium temperature Max. 100°C; Water scale; Change-over contact; Connection 1/2"; Switching range 1...14l/min; Maximum pressure 300bar; U max. 250V; Max. current 1A; Length 131mm
