Compact cylinders with accessories

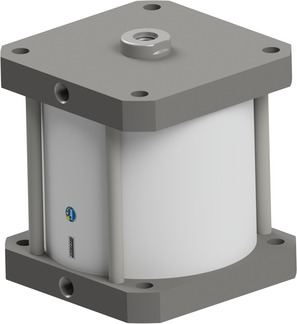

Compact cylinder Series SHD

Double acting; Pressure range 1...10bar

Data sheets, CAD files and further documents are available with the respective variant.

Other series

Compact magnetic cylinder Series NSKU-F

Compact magnetic cylinder Series NSKU-M

Compact magnetic cylinder Series NSKU-F-SEA

Compact cylinder Series SHD

Feet-type bracket Series SKP

Flange bracket Series SKFL

Yoke mounting Series SKCF

Clevis Series SKCM

90° swivel mounting bracket Series SKI

90° swivel mounting bracket Series SKZ

Choose a variant

27 Articles

All prices exclude tax.

Grundversion

					Availability	Price	Quantity
SHD125-5 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	5 mm	M14	See availability	590,80 €	Quantity Details Documents — SHD125-5
SHD125-10 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	10 mm	M14	See availability	590,80 €	Quantity Details Documents — SHD125-10
SHD125-25 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	25	M14	See availability	590,80 €	Quantity Details Documents — SHD125-25
SHD125-50 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	50 mm	M14	See availability	615,60 €	Quantity Details Documents — SHD125-50
SHD125-60 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	75 mm	M14	See availability	640,70 €	Quantity Details Documents — SHD125-60
SHD125-75 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	75 mm	M14	See availability	640,70 €	Quantity Details Documents — SHD125-75
SHD125-100 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	100 mm	M14	See availability	665,50 €	Quantity Details Documents — SHD125-100
SHD125-125 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	125 mm	M14	See availability	690,60 €	Quantity Details Documents — SHD125-125
SHD125-128 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	128 mm	M14	See availability	On request	Details Documents — SHD125-128
SHD125-160 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	160 mm	M14	See availability	725,50 €	Quantity Details Documents — SHD125-160
SHD125-200 Specifications Function Double acting Push force at 6 bar 7359 N	125 mm	1/4"	200 mm	M14	See availability	765,50 €	Quantity Details Documents — SHD125-200
SHD160-10 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	10 mm	M20	See availability	915,20 €	Quantity Details Documents — SHD160-10
SHD160-25 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	25	M20	See availability	915,20 €	Quantity Details Documents — SHD160-25
SHD160-40 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	40 mm	M20	See availability	951,70 €	Quantity Details Documents — SHD160-40
SHD160-50 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	50 mm	M20	See availability	951,70 €	Quantity Details Documents — SHD160-50
SHD160-75 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	75 mm	M20	See availability	988,30 €	Quantity Details Documents — SHD160-75
SHD160-100 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	100 mm	M20	See availability	1.024,90 €	Quantity Details Documents — SHD160-100
SHD160-125 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	125 mm	M20	See availability	1.061,50 €	Quantity Details Documents — SHD160-125
SHD160-160 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	160 mm	M20	See availability	1.114,80 €	Quantity Details Documents — SHD160-160
SHD160-200 Specifications Function Double acting Push force at 6 bar 12057 N	160 mm	3/8"	200 mm	M20	See availability	1.173,00 €	Quantity Details Documents — SHD160-200
SHD200-25 Specifications Function Double acting Push force at 6 bar 18840 N	200 mm	3/8"	25	M20	See availability	1.272,80 €	Quantity Details Documents — SHD200-25
SHD200-50 Specifications Function Double acting Push force at 6 bar 18840 N	200 mm	3/8"	50 mm	M20	See availability	1.328,90 €	Quantity Details Documents — SHD200-50
SHD200-75 Specifications Function Double acting Push force at 6 bar 18840 N	200 mm	3/8"	75 mm	M20	See availability	1.384,70 €	Quantity Details Documents — SHD200-75
SHD200-100 Specifications Function Double acting Push force at 6 bar 18840 N	200 mm	3/8"	100 mm	M20	See availability	1.440,90 €	Quantity Details Documents — SHD200-100
SHD200-125 Specifications Function Double acting Push force at 6 bar 18840 N	200 mm	3/8"	125 mm	M20	See availability	1.496,80 €	Quantity Details Documents — SHD200-125
SHD200-160 Specifications Function Double acting Push force at 6 bar 18840 N	200 mm	3/8"	160 mm	M20	See availability	1.576,70 €	Quantity Details Documents — SHD200-160
SHD200-200 Specifications Function Double acting Push force at 6 bar 18840 N	200 mm	3/8"	200 mm	M20	See availability	1.666,60 €	Quantity Details Documents — SHD200-200
