Roller valves

3/2-way valve Series PM141, MR

3/2-way valve Series PM141, MR

Nominal diameter 2,5mm; Pressure range 0...10bar; Actuation Roller/spring; Operating force at 6 bar: 12N

3/2-Wegeventil Serie MR 3/2-Wegeventil Serie MR
To Series: 3/2-way valve Series PM141, MR
Grundversion
Connection DN Function Actuation Flow rate Actuating force at 6 bar Type Sequence
4 mm 2,5 mm NO Roller/spring 60 Nl/min 6 N MR314 3530000
4 mm 2,5 mm NC Roller/spring 90 Nl/min 6 N PM141-04-C 3530002

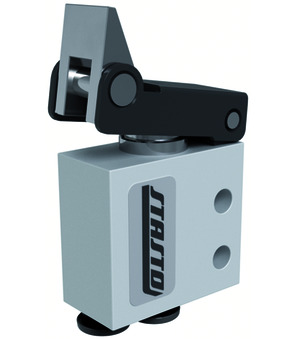

3/2-way valve Series PM142, MS

3/2-way valve Series PM142, MS

Nominal diameter 2,5mm; Pressure range 0...10bar; Actuation Unidirectional lever/spring; Operating force at 6 bar: 12N

3/2-Wegeventil Serie MS 3/2-Wegeventil Serie MS
To Series: 3/2-way valve Series PM142, MS
Grundversion
Connection DN Function Actuation Flow rate Actuating force at 6 bar Type Sequence
4 mm 2,5 mm NO Unidirectional lever/spring 60 Nl/min 6 N MS314 3540000
4 mm 2,5 mm NC Unidirectional lever/spring 90 Nl/min 12 N PM142-04-C 3540002

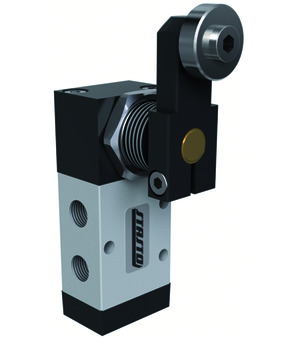

3/2-way valve Series VCLL

3/2-way valve Series VCLL

Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N

3/2-Wegeventil Serie VCLL 3/2-Wegeventil Serie VCLL
To Series: 3/2-way valve Series VCLL
Grundversion
Connection Exhaust port DN Function Actuation Actuating force at 6 bar Type Sequence
1/8" 1/8" 6 mm NO Unidirectional lever/spring 22 N VCLL329M8 3550000
1/8" 1/8" 6 mm NC Unidirectional lever/spring 22 N VCLL326M8 3550002

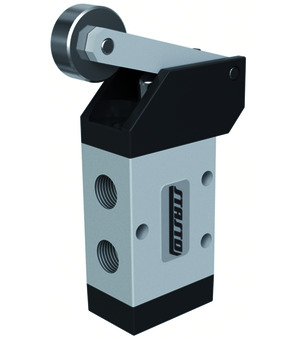

3/2-way valve Series VCLR

3/2-way valve Series VCLR

Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N

3/2-Wegeventil Serie VCLR 3/2-Wegeventil Serie VCLR
To Series: 3/2-way valve Series VCLR
Grundversion
Connection Exhaust port DN Function Actuation Actuating force at 6 bar Type Sequence
1/8" 1/8" 6 mm NO Roller/spring 22 N VCLR329M8 3560000
1/8" 1/8" 6 mm NC Roller/spring 22 N VCLR326M8 3560001

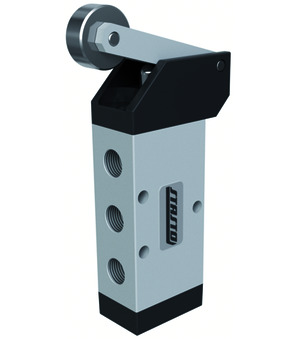

VCLR52M18
5/2-way valve Series VCLR; Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N; Connection 1/8"
To Series: 5/2-way valve Series VCLR
Connection Exhaust port DN Actuating force at 6 bar Type
1/8" 1/8" 6 mm 22 N VCLR52M18

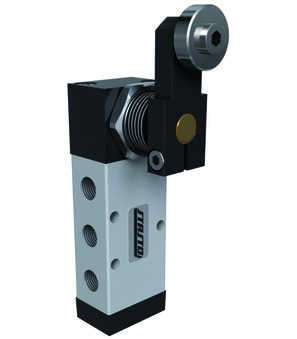

VCLL52M18
5/2-way valve Series VCLL; Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N; Connection 1/8"
To Series: 5/2-way valve Series VCLL
Connection Exhaust port DN Actuating force at 6 bar Type
1/8" 1/8" 6 mm 22 N VCLL52M18
