Check valve 50-40-PN6/10/16/25/40, ANSI150/300
Safety valve 11/4"-20-11/4"-4-metallisch-FKM
Safety valve 11/4"-20-11/4"-4-metallisch-FKM
cena na zahtevo
Safety valve, full stroke 1/2"-1"-15,8-0,5
Safety valve, full stroke 1/2"-1"-15,8-0,5
237,70 €
237,70 €

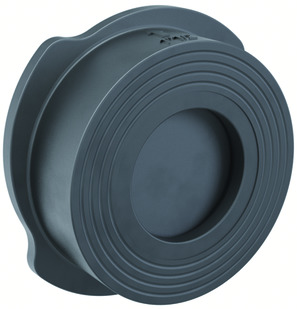

Check valve 50-40-PN6/10/16/25/40, ANSI150/300

check valve series CH009-T; wafer type; body AISI 316; disc AISI 316L; seal PTFE; medium temperature -10...200°C; DN 50mm; length 40mm; nominal flange pressure PN6/10/16/25/40, ANSI150/300


Weight: 1.01 Kg
Short Itemnumber:CH00950T
https://www.stasto.si/web/image/product.template/132511/image_1920?unique=32effcb

check valve series CH009-T; wafer type; body AISI 316; disc AISI 316L; seal PTFE; medium temperature -10...200°C; DN 50mm; length 40mm; nominal flange pressure PN6/10/16/25/40, ANSI150/300

This product is no longer available.

Contact Us
DN 50 mm
Length 40 mm
Flange PN6/10/16/25/40, ANSI150/300
