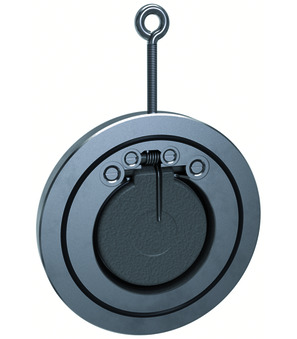

Swing check valve Series CM-2466/CM-2424; Wafer type; Reset by spring; Body Zinc plated steel; Seal NBR; Medium temperature -10…+120°C; DN 200mm; Length 22mm; Nominal flange pressure PN10/16; Flap material Stahl verzinkt
Country of origin: Italy
Weight: 1.59 Kg
Short Itemnumber: CM2424B200
Swing check valve Series CM-2466/CM-2424; Wafer type; Reset by spring; Body Zinc plated steel; Seal NBR; Medium temperature -10…+120°C; DN 200mm; Length 22mm; Nominal flange pressure PN10/16; Flap material Stahl verzinkt
Technical specifications
| DN | 200 mm |
|---|---|
| Length | 22 mm |
| Flange | PN10/16 |
| Flap material | Zinc plated steel |
| DN | 200 mm |
| Length | 22 mm |
| Flange | PN10/16 |
| Flap material | Zinc plated steel |
| Brand | STASTO |
CM-2424B-200
