Swing check valve CS-6666B-150
Swing check valve CS-6666T-150
Swing check valve CS-6666T-150
648,00 €
648,00 €
Swing check valve CS-6666E-150
Swing check valve CS-6666E-150
573,40 €
573,40 €

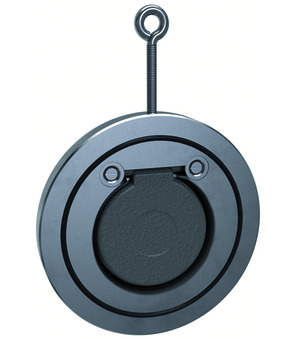

Swing check valve CS-6666B-150

Swing check valve Series CS-6666; Wafer type; Reset by its own weight; Body, Disc 1.4401; DN 150mm; Length 20mm; Nominal flange pressure PN10/16, ANSI150; Seal NBR; Medium temperature -20…120°C

Intrastat No.: 84813091
Country of origin: Italy
Weight: 4.65 Kg
Short Itemnumber:CS6666B150
https://www.stasto.si/web/image/product.template/30927/image_1920?unique=c891e91

Swing check valve Series CS-6666; Wafer type; Reset by its own weight; Body, Disc AISI 316; DN 150mm; Length 20mm; Nominal flange pressure PN10/16, ANSI150; Seal NBR; Medium temperature -20…120°C

573,40 € 573.4 EUR 573,40 €

cena na zahtevo

  • DN
  • Length
  • Flange
  • Seal
  • Seal
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
DN 150 mm
Length 20 mm
Flange PN10/16, ANSI150
materials
Seal NBR, NBR
characteristics
Medium temperature -20...+120 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_CS6666B150.stp
Download
No spare parts are available for this product.
