F1N3HSE2-Z-250-PI-01

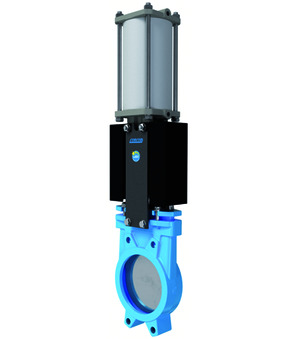

Knife gate valve with double acting actuator Series F; Wafer type; Body Ductile iron EN-GJS-500-7; Gate SAF Duplex; Soft sealed EPDM; With reinforced fixing ring; Packing PTFE/Copper; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN250; Length 114mm; Pressure range 0…1bar; Prepared for 2 inductive limit switches M18; Greased With Pneumatic grease PG; Body Coating For 100°C
Country of origin: Spain
Short Itemnumber:F1N3HSE2Z250PI01
knife gate valve with double acting actuator series F; wafer type; body ductile iron EN-GJS-500-7; gate SAF Duplex; soft sealed EPDM; with reinforced fixing ring; packing PTFE/copper; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN250; length 114mm; pressure range 0…1bar; prepared for 2 inductive limit switches M18; greased with pneumatic grease PG; body coating for 100°C
| dimension | |
|---|---|
| DN | 250 mm |
| Length | 70 mm |
| pressure | |
| Pressure range | 0...10 bar, 0...8 bar |
