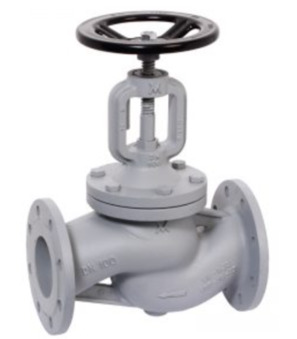

Globe valve Series GL118; PN16; Body EN-GJS-400-18-LT; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10...+350°C; Pressure range 0...16bar; DN 40mm; Length 200mm
Country of origin: Italy
Weight: 9.5 Kg
Short Itemnumber: GL11840W
globe valve series GL118; PN16; body EN-GJS-400-18-LT; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10...+350°C; pressure range 0...16bar; DN 40mm; length 200mm
Technical specifications
| Pressure range | 0...16bar |
|---|---|
| DN | 40 mm |
| Length | 200 mm |
| Pressure range | 0...16bar |
| DN | 40 mm |
| Length | 200 mm |
GL118-40-W
Documents
English
Data Sheets
1-
PDF
Data sheet · Globe valve Series GL118 · EN
Data sheet 7,4 MB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · GL11840W
CAD-STEP 1,8 MB Updated 27/09/2026
