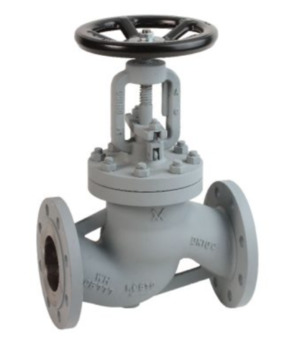

Globe valve GL120-100-W-3C
Globe valve Series GL120; PN40; Body Steel; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10…+400°C; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; DN 100mm; Length 350mm; Pressure range 0...40bar
Country of origin: Italy
Weight: 43.0 Kg
Short Itemnumber:GL120100W3C
globe valve series GL120; PN40; body steel; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10…+400°C; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; DN 100mm; length 350mm; pressure range 0...40bar
| dimension | |
|---|---|
| DN | 100 mm |
| Length | 350 mm |
| pressure | |
| Pressure range | 0...40 bar |
