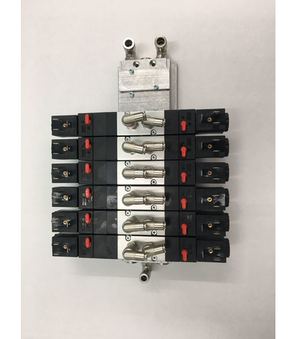

STASTO combination 8-way valve manifold Series E consisting of: 6 pcs E53W2SM18, 5/3-way solenoid valve, centre position open, 2 pcs blanking plate, 24VDC incl. LED plug with 2m cable inlet to manifold prepared for a 6mm hose silencer outlet 8mm hose connection and sealing screws outlets prepared for a 4mm hose fully assembled and tested
Technical specifications
| Brand | STASTO |
|---|
| Brand | STASTO |
ME818
x 1.0 Pcs
Manifold sub-base Series ME; For way-valves Series E5 And V5; Anodized aluminum; Number of valves 8; Pressure connection 1/4"; Exhaust ports 1/4"; Valve size 1/8"
E53W2S918
x 6.0 Pcs
5/3-way valve E53W2S918
5/3-way valve Series E5.; Pilot-operated; Pressure range 3...10bar; Actuation Electrical/electrical; Standard coil C001; Connector size 22mm; Connection 1/8"; Nominal diameter 6mm; Central position Opened; Flow rate 530Nl/min
C002-31-LVCV20-2
x 12.0 Pcs
Connector C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC
PI16-04-18-N-0-360
x 6.0 Pcs
Swivel male elbow PI16-04-18-N-0-360
Swivel male elbow Series PI16-360; Nickel plated brass; Cylindrical thread; Diameter 4mm; Thread 1/8"
PI19-04-18-N-0-360
x 6.0 Pcs
Swivel male elbow PI19-04-18-N-0-360
Swivel male elbow Series PI19-360; Nickel plated brass; Cylindrical thread; Diameter 4mm; Thread 1/8"
TH50-14-N-0
x 3.0 Pcs
Plug screw TH50-14-N-0
Plug screw Series TH50; Nickel plated brass; With o-ring NBR; Cylindrical thread; Hexagon socket; Thread 1/4"
PI16-06-14-N-0-360
x 1.0 Pcs
Swivel male elbow PI16-06-14-N-0-360
Swivel male elbow Series PI16-360; Nickel plated brass; Cylindrical thread; Diameter 6mm; Thread 1/4"
PI16-08-14-N-0-360
x 2.0 Pcs
Swivel male elbow PI16-08-14-N-0-360
Swivel male elbow Series PI16-360; Nickel plated brass; Cylindrical thread; Diameter 8mm; Thread 1/4"
