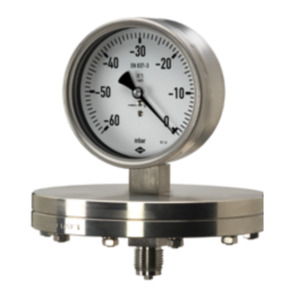

MA032-100B-6P

MA032-100B-6P

manometer - chemical diaphragm type; body stainless steel AISI 303; measuring unit, connection stainless steel AISI 316Ti; front glass flat instrument glass; ambient temperature -20...+60°C; medium temperature max. +100°C; overload 5 x value of scale, max. 40bar; seal NBR; connection G1/2" below; test flange diameter 100mm; class 1,6; diameter 100mm; indicating range 0…600; unit kPa

Intrastat No.: 90262040
Country of origin: Austria Made in Europe
Short Itemnumber: MA032100B6P
https://www.stasto.si/web/image/product.template/228192/image_1920?unique=bcfc56d

manometer - chemical diaphragm type; body stainless steel AISI 303; measuring unit, connection stainless steel AISI 316Ti; front glass flat instrument glass; ambient temperature -20...+60°C; medium temperature max. +100°C; overload 5 x value of scale, max. 40bar; seal NBR; connection G1/2" below; test flange diameter 100mm; class 1,6; diameter 100mm; indicating range 0…600; unit kPa

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Diameter
  • Indicating range
  • Unit

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Diameter 100 mm
Indicating range 0...16
Unit bar
Documents
Data sheets, drawings and CAD files
Diameter 100 mm
Indicating range 0...16
Unit bar

MA032-100B-6P

Documents

1 Documents

German / Deutsch
ZIP

Data Sheets

1
No spare parts are available for this product.
