Pressure switch MDR3/11-R3/10
FM42-34-N-130
FM42-34-N-130
688,40 €
688,40 €
Flow monitors With Inspection glass 1/2"-12…40-16-230-3-114
Flow monitors With Inspection glass 1/2"-12…40-16-230-3-114
cena na zahtevo

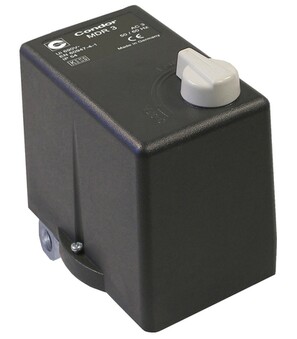

Pressure switch MDR3/11-R3/10

Pressure switch Series MDR3; Suitable for Compressors; 3-pin; Protection class IP54; Switching capacity for 3-phase current 7,5kW (400V), At AC 2,2kW (230V); Hysteresis range adjustable; Overpressure protection 35bar; Female thread 1/2"; Motor protection relay; Relief valve; Mechanical ON/OFF-switch; Range of adjustment 4...11bar; Current 6,3...10A

Intrastat No.: 85362010
Country of origin: Poland
Weight: 0.62 Kg
Short Itemnumber:MDR311R310
https://www.stasto.si/web/image/product.template/160409/image_1920?unique=ea8addf

pressure switch series MDR3; suitable for compressors; 3-pin; protection class IP54; switching capacity for 3-phase current 7,5kW (400V), at AC 2,2kW (230V); hysteresis range adjustable; overpressure protection 35bar; female thread 1/2"; motor protection relay; relief valve; mechanical ON/OFF-switch; range of adjustment 4...11bar; current 6,3...10A

275,30 € 275.3 EUR 275,30 €

cena na zahtevo

  • Current
  • Range of adjustment

This combination does not exist.

Availability:
Contact Us
Electrical key figures
Current 6,3...10 A
characteristics
Range of adjustment 4...11 bar
No spare parts are available for this product.
