Maintenance unit 3/8"-1100-16

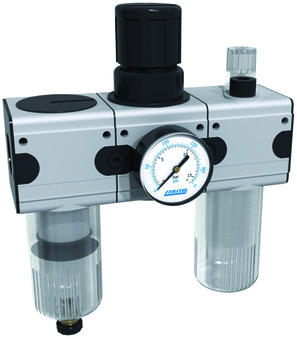

Maintenance unit 3/8"-1100-16

Maintenance unit Series Modul MU303; Relieving; Drain valve Semi-automatic; Pressure range 0,5...10bar; Plastic bowl; Filter element 5µm; Connection 3/8"; Flow at 6bar/Δp=1bar 1100Nl/min; Max. inlet pressure 16bar

Wartungseinheit Serie Modul MU303
Wartungseinheit Serie Modul MU303
Intrastat No.: 84811005
Country of origin: Germany
Weight: 1.11 Kg
Short Itemnumber: MU303380.510

Scope of delivery

maintenance unit, manometer
https://www.stasto.si/web/image/product.template/108799/image_1920?unique=726d741

maintenance unit series Modul MU303; relieving; drain valve semi-automatic; pressure range 0,5...10bar; plastic bowl; filter element 5µm; connection 3/8"; flow at 6bar/Δp=1bar 1100Nl/min; max. inlet pressure 16bar

168,80 € 168.8 EUR 168,80 €

cena na zahtevo

excl. tax
  • Connection
  • Dimension
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/8"
Pressure range 0,5...10bar
Flow at 6bar/Δp=1bar 1100 Nl/min
Max. inlet pressure 16 bar
All specifications (6)
Documents
Data sheets, drawings and CAD files
Connection 3/8"
Pressure range 0,5...10bar
Flow at 6bar/Δp=1bar 1100 Nl/min
Max. inlet pressure 16 bar
Filter element 5 µm
Brand STASTO

MU303-38-0,5/10

Documents

4 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Filter FI03-38
FI03-38 x 1.0 Pcs
Filter FI03-38
Filter Series Modul FI03; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Plastic bowl; Filter element 5µm; Connection 3/8"; Flow at 6bar/Δp=1bar 2100Nl/min
RE03-38-0,5/10 x 1.0 Pcs
RE03-38-0,5/10
Pressure regulator; Relieving; Connection 3/8"; Flow at 6bar 1500Nl/min; Pressure range 0,5-10bar; Max. inlet pressure 16bar
MA001-4014R-16-D x 1.0 Pcs
MA001-4014R-16-D
Bourdon tube manometer; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
Lubricator LU03-38
LU03-38 x 1.0 Pcs
Lubricator LU03-38
Lubricator Series Modul LU03; Inlet pressure Max. 16bar; Plastic bowl; Connection 3/8"; Flow at 6bar/Δp=1bar 1900Nl/min
MCS03-14H/38
MCS03-14H/38 x 2.0 Pcs
MCS03-14H/38
Connection set For 2 units; Connection 1/4", 3/8"
KART0N121 x 1.0 Pcs
KART0N121
Packaging board, 296X178X120
