PS110-I1-PS-C001-04-C002-31-LV-2
PS111-I1-C001-23-C002-31-6
PS111-I1-C001-23-C002-31-6
176,20 €
176,20 €
PS111-I1-C001-23-C002-31-LVCV20-1
PS111-I1-C001-23-C002-31-LVCV20-1
205,00 €
205,00 €

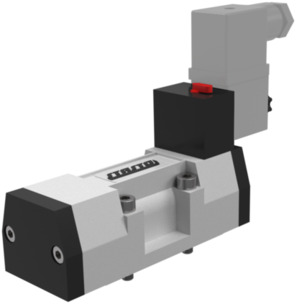

PS110-I1-PS-C001-04-C002-31-LV-2

PS110-I1-PS
5/2-way valve Series PS110; According to ISO 5599/1; Pilot-operated; Pressure range 2,5...10bar; Actuation Electrical/internal control air; Standard coil C001; Connector size 22mm; Size ISO1; Nominal diameter 8mm; Flow rate 1080Nl/min
C001-04
Coil Type C001; Connector size 22mm; Voltage 12VDC / 24V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.42 Kg
Short Itemnumber:PS110I1PSC00104C00231LV2
https://www.stasto.si/web/image/product.template/188708/image_1920?unique=ab69362

PS110-I1-PS
5/2-way valve series PS110; according to ISO 5599/1; pilot-operated; pressure range 2,5...10bar; actuation electrical/internal control air; standard coil C001; connector size 22mm; size ISO1; nominal diameter 8mm; flow rate 1080Nl/min
C001-04
coil type C001; connector size 22mm; voltage 12VDC / 24V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

122,90 € 122.9 EUR 122,90 €

cena na zahtevo

  • Diameter
  • Connection
  • Male thread
  • DN
  • Pressure connection
  • Length
  • Size
  • Working ports
  • Control ports
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Nominal flow rate
  • Coil
  • Flow rate

This combination does not exist.

Availability:
Contact Us
dimension
DN 8 mm
Size ISO1
function
Actuation Electric/Internal control air
Designs
Connector size 22 mm
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 12VDC / 24V/50-60Hz
pressure
Pressure range 2,5...10 bar
characteristics
Coil C001
Flow rate 1080 Nl/min
