3/2-way poppet valve Series PV Store

PV32W1S6M10A-SCN01200-C003-32-LV-2

PV32W1S6M10A-SCN01200-C003-32-LV-2

PV32W1S6M10A

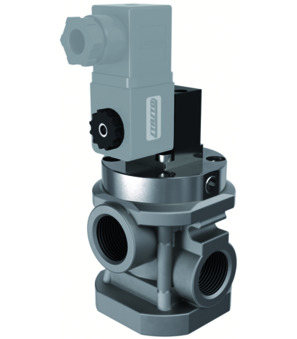

3/2-way poppet valve Series PV; Actuation Electrical/spring; Internal control air; Pressure range 3...10bar; NC; Type of coil SCN; Connector size 32mm; Connection 1"; Nominal diameter 25mm; Flow rate 13500Nl/min
SCN01200
Coil Type SCN; Connector size 32mm; Voltage 12VDC
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 1.29 Kg
Short Itemnumber:PV32W1S6M10ASCN01200C00332LV2

PV32W1S6M10A
3/2-way poppet valve series PV; actuation electrical/spring; internal control air; pressure range 3...10bar; NC; type of coil SCN; connector size 32mm; connection 1"; nominal diameter 25mm; flow rate 13500Nl/min
SCN01200
coil type SCN; connector size 32mm; voltage 12VDC
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

452,22 € 452.22 EUR 452,22 €

Connection
- 1"
DN
- 25 mm
Connector size
- 32 mm
Design
- With integrated LED-yellow and VDR
Voltage
- 12VDC
Voltage type
- -
Coil
- SCN
Flow rate
- 13500 Nl/min

This combination does not exist.

Availability:

Add to Cart

dimension
Connection	1"
DN	25 mm
Designs
Connector size	32 mm
design
Design	With integrated LED-yellow and VDR
Electrical key figures
Voltage	12VDC
characteristics
Coil	SCN
Flow rate	13500 Nl/min
