Pressure regulator RE01-14-0,5/4-MA

Price:

52,20 €

Home
Search
⁰
Wishlist
Account

Pressure regulator Series RE01/R Store

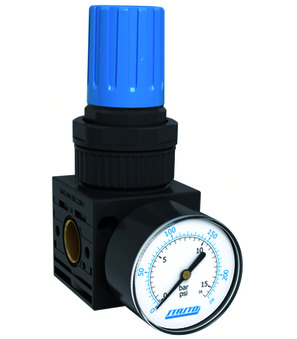

Pressure regulator RE01-14-0,5/4-MA

Pressure regulator RE01-14-0,5/4-MA

Pressure regulator Series RE01/R; Relieving; Connection 1/4"; Flow at 6,3bar/Δp=1bar 1200Nl/min; Pressure range 0,5-4bar; Max. inlet pressure 16bar

Intrastat No.: 84811099
Country of origin: Italy
Weight: 0.21 Kg
Short Itemnumber:RE01140.54MA

pressure regulator series RE01/R; relieving; connection 1/4"; flow at 6,3bar/Δp=1bar 1200Nl/min; pressure range 0,5-4bar; max. inlet pressure 16bar

52,20 € 52.2 EUR 52,20 €

Connection
- 1/4"
Pressure range
- 0,5...4 bar
Max. inlet pressure
- 16 bar
Flow rate at 6.3bar/Δp=1bar
- 1200 Nl/min

This combination does not exist.

Availability:

Add to Cart

dimension
Connection	1/4"
pressure
Pressure range	0,5...4 bar
characteristics
Max. inlet pressure	16 bar
Flow rate at 6.3bar/Δp=1bar	1200 Nl/min

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Pressure regulator RE01-14-0,5/4-MA_EN.pdf

Declarations of Conformity

1

Declaration of conformity_Pressure regulator Series RE01/R_EN.pdf

CAD / 3D

1

CADSTEP_RE01140.54MA.stp

Datové listy

1

Datový list_regulátor tlaku RE01-14-0,5/4-MA_CS.pdf

Prohlášení o shodě

1

Prohlášení o shodě_regulátor tlaku série RE01/R_CS.pdf

Data Sheets

1

Datablad_Trykregulator RE01-14-0,5/4-MA_DA_DK.pdf

Datenblätter

1

Datenblatt_Druckregler RE01-14-0,5/4-MA_DE.pdf

Konformitätserklärungen

1

Konformitätserklärung_Druckregler Serie RE01/R_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Ρυθμιστής πίεσης RE01-14-0,5/4-MA_EL_GR.pdf

Data Sheets

1

Ficha técnica_Regulador de presión RE01-14-0,5/4-MA_ES.pdf

Data Sheets

1

Tietolehti_Paineensäädin RE01-14-0,5/4-MA_FI.pdf

Data Sheets

1

Fiche technique_Régulateur de pression RE01-14-0,5/4-MA_FR.pdf

Data Sheets

1

Podatkovni list_Regulator tlaka RE01-14-0,5/4-MA_HR.pdf

Adatlapok

1

Adatlap_nyomásszabályozók RE01-14-0,5/4-MA_HU.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_nyomásszabályozó sorozat RE01/R_HU.pdf

Data Sheets

1

Scheda tecnica_Regolatore di pressione RE01-14-0,5/4-MA_IT.pdf

Data Sheets

1

Datablad_Trykkregulator RE01-14-0,5/4-MA_NB_NO.pdf

Data Sheets

1

Datasheet_Drukregelaar RE01-14-0,5/4-MA_NL.pdf

Karty katalogowe

1

Arkusz danych_Reduktory ciśnienia RE01-14-0,5/4-MA_PL.pdf

Deklaracje zgodności

1

Deklaracja zgodności_regulator ciśnienia Seria RE01/R_PL.pdf

Data Sheets

1

Fișă de date_Regulator de presiune RE01-14-0,5/4-MA_RO.pdf

Podatkovni listi

1

Podatkovni list_Regulatorji tlaka RE01-14-0,5/4-MA_SL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_Regulatorji tlaka serija RE01/R_SL.pdf

Data Sheets

1

Tehnički list_regulator pritiska RE01-14-0,5/4-MA_SRLATIN.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_regulator pritiska serije RE01/R_SRLATIN.pdf

Data Sheets

1

Datablad_Tryckregulator RE01-14-0,5/4-MA_SV.pdf

RE01-14-0,5/8 x 1.0

RE01-14-0,5/8

Pressure regulator; Relieving; Connection 1/4"; Flow at 6,3 bar 1200Nl/min; Pressure range 0,5-8bar; Max. inlet pressure 16bar; Without manometer

SP-RE/FR01-14-0,5/4 x 1.0

SP-RE/FR01-14-0,5/4

Compression spring 0,5...4bar; Pressure regulator RE01; Filter regulator FR01

Bourdon tube manometer MA001-40R-4-D

MA001-40R-4-D x 1.0

Bourdon tube manometer MA001-40R-4-D

Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-4/0-58; Unit bar/psi; Connection 1/8"
