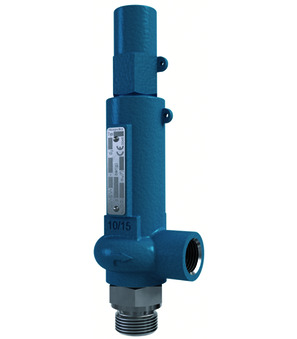

Relief valve RV06-34-16-19,8-V-3D

Relief valve Series RV06; Body 1.4571; Cap Ductile iron EN-GJS-400-15; Gas-proof cover; Without TÜV-inspection number; Incl. Inspection certificate EN-10204-3.1; For material (Inlet body); Male thread G 3/4"; DN 16mm; Female thread G 3/4"; Seat seal FKM; Other seals FKM; Set pressure 19,8bar

Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.99 Kg
Short Itemnumber:RV06341619.8V3D
https://www.stasto.si/web/image/product.template/161803/image_1920?unique=964a29e

relief valve series RV06; body 1.4571; cap ductile iron EN-GJS-400-15; gas-proof cover; without TÜV-inspection number; incl. inspection certificate EN-10204-3.1; for material (inlet body); inlet male G 3/4"; DN 16mm; outlet female G 3/4"; seat seal FKM; other seals FKM; set pressure 19,8bar

363,30 € 363.3 EUR 363,30 €

cena na zahtevo

  • Male thread
  • Female thread
  • DN
  • Seat seal
  • Other seals
  • Set pressure

This combination does not exist.

Availability:
Contact Us
dimension
Male thread G 3/4"
Female thread G 3/4"
DN 16 mm
materials
Seat seal FKM
Other seals FKM
characteristics
Set pressure 19,8 bar
