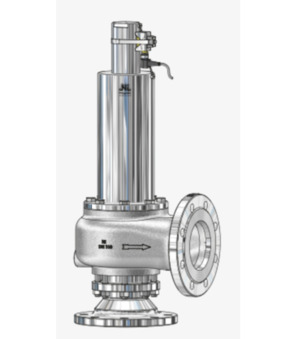

Relief valve RV16-80A-50-5,5/8,5-5C

Relief valve RV16-80A-50-5,5/8,5-5C

Relief valve Series RV16; For vapors, gases and liquids; Body Stainless steel AISI 316Ti; Spring cover And Outlet body Stainless steel AISI 316Ti; With gas-proof cover; Inlet DN80/ANSI150; Outlet DN80/ANSI150; DN 50mm; Seat seal PTFE; Other seals PTFE/EPDM; Set pressure 5,5...8,5bar

Intrastat No.: 84814010
Country of origin: Germany Made in Europe
Weight: 2.5 Kg
Short Itemnumber: RV1680A505.58.55C
https://www.stasto.si/web/image/product.template/151265/image_1920?unique=551310b

relief valve series RV16; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; with gas-proof cover; inlet DN80/ANSI150; outlet DN80/ANSI150; DN 50mm; seat seal PTFE; other seals PTFE/EPDM; set pressure 5,5...8,5bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Inlet
  • Outlet

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Inlet DN80/ANSI150
Outlet DN80/ANSI150
DN 50 mm
Documents
Data sheets, drawings and CAD files
Inlet DN80/ANSI150
Outlet DN80/ANSI150
DN 50 mm

RV16-80A-50-5,5/8,5-5C

Documents

1 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
No spare parts are available for this product.
