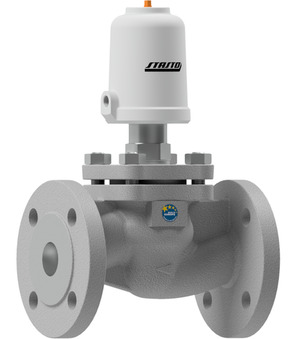

Pneumatically operated seat valve SE23-40-ST81
Pneumatically operated seat valve Series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media and liquids; Closing against flow; Medium temperature -30...+170°C; DN 40mm; Operating pressure 0...17bar; Control pressure 5...10bar; Diameter Actuator 80mm
Country of origin: Germany
Weight: 3.9 Kg
Short Itemnumber: SE2340ST81
pneumatically operated seat valve series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 40mm; operating pressure 0...17bar; control pressure 5...10bar; diameter actuator 80mm
| dimension | |
|---|---|
| DN | 40 mm |
| Flange | PN40 |
| Diameter Actuator | 80 mm |
| design | |
| Design | ATEX |
| pressure | |
| Operating pressure | 0...17 bar |
| Control pressure | 5...10 bar |
Data sheets, Instructions, 3D-files and Certificates...
