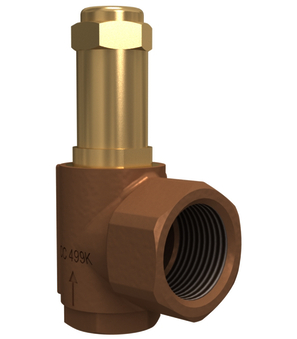

Safety valve, full stroke SF13-12W-15,8-0,8-T
Safety valve, full stroke Series SF13; Body Bronze; Gas-proof cover; Without lifting; Application: Compressed air, Flammable and toxic gases and steam, Liquids; Seal PTFE; Medium temperature -60...+225°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 0,8bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.5 Kg
Short Itemnumber: SF1312W15.80.8T
Country of origin: Germany
Weight: 0.5 Kg
Short Itemnumber: SF1312W15.80.8T
safety valve, full stroke series SF13; body bronze; gas-proof cover; without lifting; application: compressed air, flammable and toxic gases and steam, liquids; seal PTFE; medium temperature -60...+225°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 0,8bar
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 0,8 bar |
| Medium temperature | -60...+225 °C |
No spare parts are available for this product.
