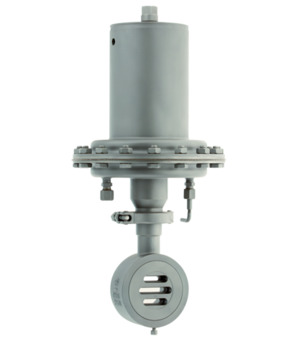

Sliding gate-pressure regulator SG17-50-WWF2/5

Sliding gate-pressure regulator SG17-50-WWF2/5

Sliding gate-pressure regulator Series SG17; Controlled by own medium; Nominal pressure PN10/40; Wafer type; Material Stainless steel 1.4408; Fixed disc Edelstahl 1.4571 beschichtet; Sliding disc SFC; Nominal diameter 50mm; Kvs-value 45 (100%); Characteristic linear; Pressure range 2...5bar; Length 43mm

Intrastat No.: 84818079
Country of origin: Germany Made in Europe
Weight: 13.2 Kg
Short Itemnumber: SG1750WWF25
https://www.stasto.si/web/image/product.template/117250/image_1920?unique=4de5898

sliding gate-pressure regulator series SG17; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316/AISI 316Ti; fixed disc Edelstahl 1.4571 beschichtet; sliding disc SFC; nominal diameter 50mm; kvs-value 45 (100%); characteristic linear; pressure range 2...5bar; length 43mm

5.616,60 € 5616.6 EUR 5.616,60 €

cena na zahtevo

excl. tax
  • DN
  • Length
  • Pressure range
  • Fixed disc
  • Sliding disc
  • Kvs-value
  • Characteristic

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 2...5 bar
Fixed disc Stainless steel AISI 316Ti coated
Sliding disc SFC
DN 50 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 2...5 bar
Fixed disc Stainless steel AISI 316Ti coated
Sliding disc SFC
DN 50 mm
Kvs-value 45 (100%)
Characteristic Linear
Length 43 mm

SG17-50-WWF2/5

Documents

1 Documents

German / Deutsch
ZIP

Assembly and Operating Instructions

1
No spare parts are available for this product.
