2/2-way solenoid valve Series SL035 Store

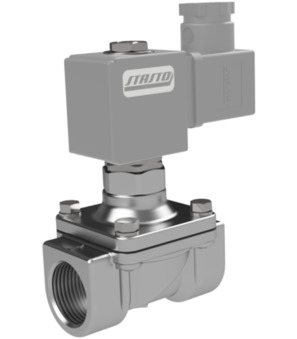

2/2-way solenoid valve SL035-38-AS01

2/2-way solenoid valve Series SL035; Combined operated; NO; Body Stainless steel AISI 316; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/8"; DN 15mm; Pressure 0...10bar; Medium -10/+120°C; Length 68mm; Type of coil BDA; Voltage 220-230V/50-60HZ; inkl. Gerätesteckdose

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.67 Kg
Short Itemnumber:SL03538AS01

2/2-way solenoid valve series SL035; combined operated; NO; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; connector size 32mm; G 3/8"; DN 15mm; pressure 0...10bar; medium -10/+120°C; length 68mm; type of coil BDA; voltage 220-230V/50-60HZ; inkl. Gerätesteckdose

cena na zahtevo

Female thread
- G 3/8"
DN
- 15 mm
Length
- 68 mm
Voltage
- 220-230V/50-60Hz
Pressure
- 0...10 bar
Coil
- BDA
Medium temperature
- -10...+120 °C

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Female thread	G 3/8"
DN	15 mm
Length	68 mm
Electrical key figures
Voltage	220-230V/50-60Hz
pressure
Pressure	0...10 bar
characteristics
Coil	BDA
Medium temperature	-10...+120 °C

SL035-38 x 1.0

2/2-way solenoid valve SL035-38

2/2-way solenoid valve Series SL035; Combined operated; NO; Body Stainless steel AISI 316; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...120°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 15mm; Pressure AC/DC 0...10bar; Length 68mm
