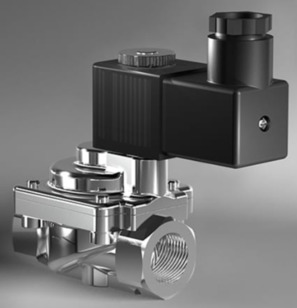

2/2-way solenoid valve; Pilot-operated; NC; Piston type; Body Brass; Seal PTFE/FKM; Connector size 32mm; Pressure 0,5…40bar; Medium temperature -10...+80°C; Incl. coil; G 1/2"; DN 13,5mm; Length 67mm; Voltage 230V/50-60Hz; ATEX Ex II 2G Ex mb IIC T4 Gb And Ex II 2D Ex mb tb IIIC T130°C Db; Free of oil and grease for oxygen
Country of origin: Germany
Short Itemnumber: SL09712TV2202
2/2-way solenoid valve; pilot-operated; NC; piston type; body brass; seal PTFE/FKM; connector size 32mm; pressure 0,5…40bar; medium temperature -10...+80°C; incl. coil; G 1/2"; DN 13,5mm; length 67mm; voltage 230V/50-60Hz; ATEX Ex II 2G Ex mb IIC T4 Gb and Ex II 2D Ex mb tb IIIC T130°C Db; free of oil and grease for oxygen
Technical specifications
| Female thread | G 1/2" |
|---|---|
| DN | 13,5 mm |
| Length | 67 mm |
| Voltage | 230V/50-60Hz |
| Female thread | G 1/2" |
| DN | 13,5 mm |
| Length | 67 mm |
| Voltage | 230V/50-60Hz |
| Design | ATEX |
SL097-12-TV-22-02
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · 2/2-Wege-Magnetventil Serie SL097 · DE
Data sheet 2,9 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · 2/2-way solenoid valve Series SL097 · EN
Data sheet 2,8 MB Updated 13/06/2026
