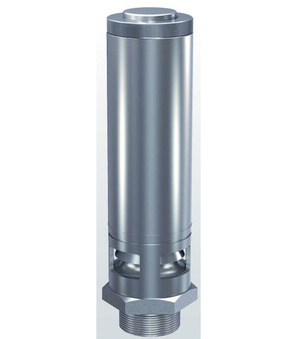

Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Incl. TÜV-Inspection certificate EN-10204-3.2; Seal FKM; Medium temperature -20...+200°C; Connection G 2"; DN 48mm; Set pressure 9bar
Country of origin: Germany
Weight: 5.2 Kg
Short Itemnumber: SV1120489V3G
safety valve series SV11; with twist lifting; body AISI 316L; compression spring AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; incl. TÜV-inspection certificate EN-10204-3.2; seal FKM; medium temperature -20...+200°C; connection G 2"; DN 48mm; set pressure 9bar
Technical specifications
| Connection | G 2" |
|---|---|
| Seal | FKM |
| Medium temperature | -20...+200 °C |
| DN | 48 mm |
| Connection | G 2" |
| Seal | FKM |
| Medium temperature | -20...+200 °C |
| DN | 48 mm |
| Set pressure | 9 bar |
| Male thread | G 2" |
SV11-20-48-9-V-3G
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV11-3G · DE
Data sheet 4,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV11-3G · EN
Data sheet 4,0 MB Updated 13/06/2026
