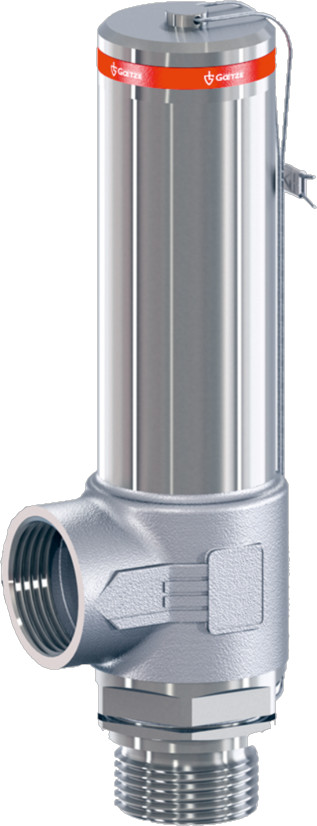

Safety valve SV30-112W-23-16

Safety valve SV30-112W-23-16

Safety valve; For cryogenic applications; Inlet body AISI 316L; Outlet body AISI 316; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Inlet male G11/2"; DN 23mm; Outlet female G2"; Set pressure 16 Bar

Intrastat No.: 84814090
Country of origin: Germany Made in Europe
Weight: 0.0 Kg
Short Itemnumber: SV30112W2316
https://www.stasto.si/web/image/product.template/239089/image_1920?unique=1a28827

Safety valve; For cryogenic applications; Inlet body AISI 316L; Outlet body AISI 316; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Inlet male G11/2"; DN 23mm; Outlet female G2"; Set pressure 16 Bar

2.590,90 € 2590.9 EUR 2.590,90 €

cena na zahtevo

excl. tax
  • DN
  • Inlet male
  • Outlet female
  • Set pressure

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 23 mm
Inlet male G 1 1/2"
Outlet female G 2"
Set pressure 16 bar
Documents
Data sheets, drawings and CAD files
DN 23 mm
Inlet male G 1 1/2"
Outlet female G 2"
Set pressure 16 bar

SV30-112W-23-16
