STASTO Combination
TEX003
TEX003
532,79 €
532,79 €
THE001
THE001
cena na zahtevo

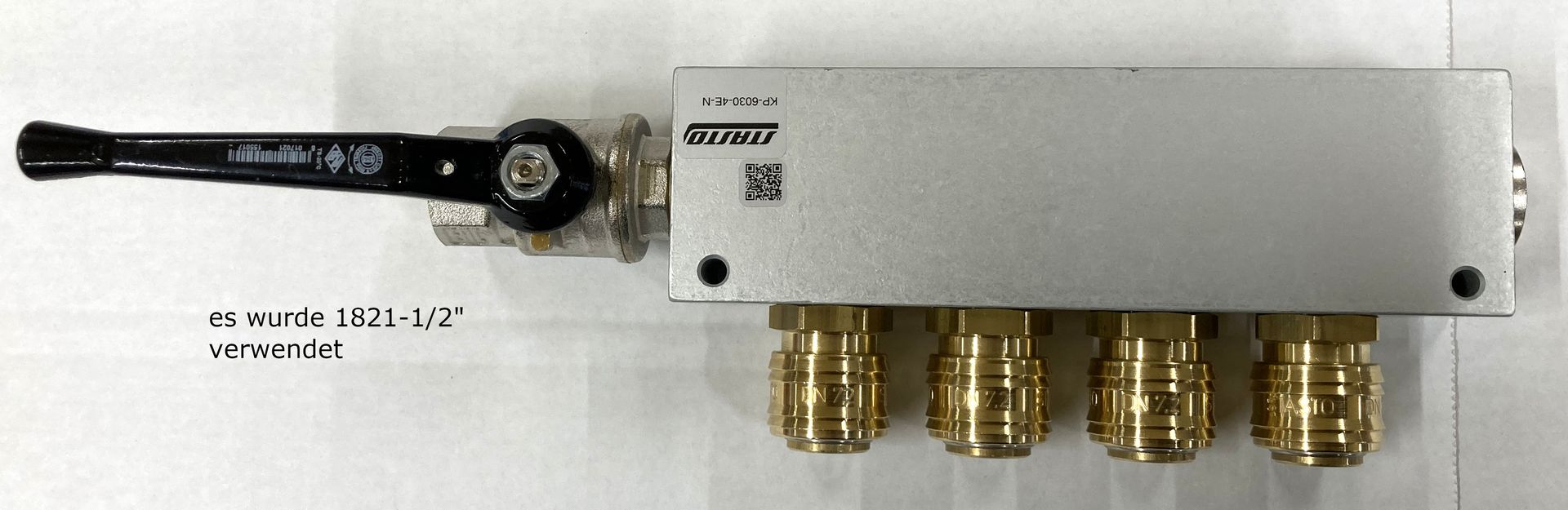

STASTO Combination

STASTO Combination
Fully assembled and tested:
Distributor; Material Anodized aluminum; Connecting thread 1/2"
Outlets Open 4 Pcs Coupling C0C72-M12-B; DN 7,2; Brass; Seal NBR; Pressure -0,87...35bar
Inlet: Ball valve 1821-1/2"
Incl. Plug screw

Intrastat No.: 84123100
Country of origin: Italy
Weight: 1.106 Kg
Short Itemnumber:TH0001
https://www.stasto.si/web/image/product.template/174214/image_1920?unique=65690a3

STASTO combination
fully assembled and tested:
distributor; material anodized aluminum; connecting thread 1/2"
outlets open 4 pcs coupling C0C72-M12-B; DN 7,2; brass; seal NBR; pressure -0,87...35bar
inlet: ball valve 1821-1/2"
incl. plug screw

999.999,00 € 999999.0 EUR 999.999,00 €

cena na zahtevo

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    ZIP
    Montage- und Betriebsanleitungen
    1
    Montageanleitung_STASTO Kombination_DE.jpg
    Download
    No documents are available for this language. Please open "Other languages."
    Ball valve made of brass 1821-1/2"
    1821-1/2" x 1.0
    Ball valve made of brass 1821-1/2"
    Ball valve made of brass Series 1821; Full bore; Female/male thread; Seal PTFE; Medium temperature -20...+160°C; Turning handle Aluminum; Connection G 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 64,5mm
    Add to Cart
    C0C72-M12-B
    C0C72-M12-B x 4.0
    C0C72-M12-B
    Coupling DN 7,2; Male thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C; Thread 1/2"
