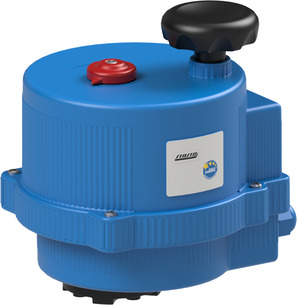

Electrical actuator VB110-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
Intrastat No.: 85013100
Country of origin: Italy
Weight: 4.7 Kg
Short Itemnumber:VB110L
Country of origin: Italy
Weight: 4.7 Kg
Short Itemnumber:VB110L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
| Designs | |
|---|---|
| Flange ISO5211 | F07/F10-star 17mm |
| Electrical key figures | |
| Voltage | 24VAC/DC |
| characteristics | |
| Actuator | VB110L |
| Torque | 110 Nm |
| Operating time | 27 s |
| Others | |
| Protection class | IP67 |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Electrical actuator Series VB_EN.pdf
Download
Assembly and Operating Instructions
1Operating and maintenance instruction_Electrical actuator Series VB_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Electrical actuator Series VB_EN.pdf
Download
Adatlapok
1Adatlap_elektromos forgatóhenger sorozat VB_HU.pdf
Download
Szerelési és kezelési útmutatók
1Üzemeltetési és karbantartási utasítás_elektromos forgatóhenger sorozat VB_HU.pdf
Download
Megfelelőségi nyilatkozatok
1Megfelelőségi nyilatkozat_elektromos forgatóhenger sorozat VB_HU.pdf
Download
Data Sheets
1Tehnički list_električni aktuator serije VB_SRLATIN.pdf
Download
Assembly and Operating Instructions
1Instrukcija rada i održavanja_električni aktuator serije VB_SRLATIN.pdf
Download
Declarations of Conformity
1Deklaracija o usklađenosti_električni aktuator serije VB_SRLATIN.pdf
Download
No spare parts are available for this product.
